Animating with Media Objects

By Joanne Amarisa, Jaleesa Trapp, Greg Benedis-Grab

Introduction

p5.js makes it fun and simple to draw, color and animate shapes on an HTML canvas. It also gives us easy ways to create visuals using media files such as GIFs and still images.

A still frame from an animation of three flowers with petals illustrated using pointillism, three solid stems, and a watering pot.

A still frame from an animation of three flowers with petals illustrated using pointillism, three solid stems, and a watering pot.

Image and GIF files contain information that can be used to display or modify them in a p5.js project. In this tutorial you will create an interactive animation using media and learn to:

  • Upload and display image files in a p5.js sketch using the preload() function and p5.Image objects
  • Adjust the appearance of image files in p5.js using p5.Image methods for sizing, positioning, an styling
  • Interact with p5.Image objects
  • Create an extra drawing surface using createGraphics()
  • Save the sketch as a GIF file to your device

Explore this example of a finished interactive animation using media objects.

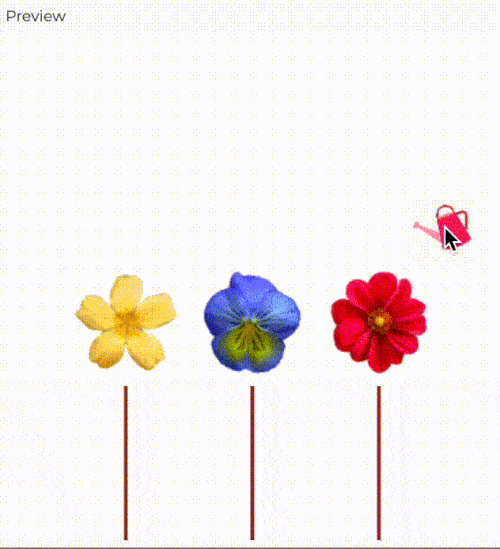

Three flower images ascending on the screen

Three flower images ascending on the screen

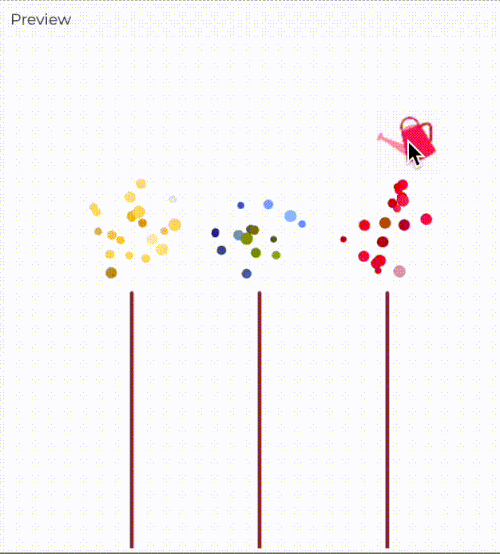

A paint can creates an arrangement of colored dots that approximate the colors of flowers.

A paint can creates an arrangement of colored dots that approximate the colors of flowers.

Things you’ll need

For more information on these concepts see these tutorials: Get StartedVariables and Change, Conditionals and Interactivity, and Organizing Code with Functions.

Step 1 – Upload image files to the sketch folder

  • Download the three .png image files and one .gif file onto your computer. You can also use your own drawings or images, such as from royalty-free image sources such as Wikimedia Commons.
  • Open the p5.js Web Editor in a browser, name your project “Animating with Media Objects”, and save it to your account.
  • Select the arrow next to sketch.js on the top left of the Editor. The sketch folder will appear on the left sidebar.
  • Click the plus “+” button, and select “Upload file”.
  • Select the four images from your device and upload them into the sketch folder. You can drag and drop the files into the upload box that appears, or click the box and select files from your computers’ files manager.

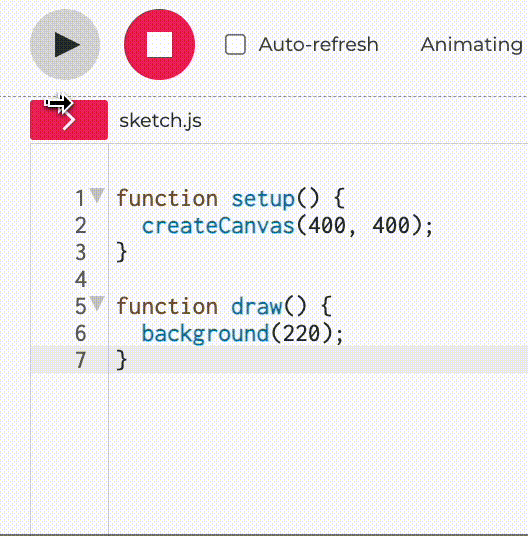

A user clicks the arrow button, + button and selecting the Upload File option on the p5.js Web Editor.

A user clicks the arrow button, + button and selecting the Upload File option on the p5.js Web Editor.

Image files

Image files store the grid of colored pixels that make up an image. There are a number of different image file types that p5.js can process.. The most common image types are JPEGs, PNGs, or GIFs. You can identify them by the extension found at the end of their filenames: .jpg, .png, .gif.

JPEGs and PNGs are among the most common types of static images, which are images that do not move. JPEGs often refer to photographs, whereas PNGs often refer to graphics and designs, as they support images with transparent backgrounds. The term GIF is widely used for animated images. They contain a series of images that can be displayed as an animation.

Step 2 – Load the images into the canvas

  • Declare four global variables to represent each image: let flower1, flower2, flower3, water;
  • Define the preload() function after global variables are declared, and directly before function setup().
  • In the preload() function, type in flower1 = loadImage("flower-1.png");
    • This loads the image information into memory using the loadImage() function.
    • The image is assigned to the global variable flower1.
    • Repeat this step for all the images.

Your code should look like this:

//Variables for image files.
let flower1;
let flower2;
let flower3;
let water;

function preload() {
  //Load the image files.
  flower1 = loadImage("flower-1.png");
  flower2 = loadImage("flower-2.png");
  flower3 = loadImage("flower-3.png");
  water = loadImage("Water.gif");
}

preload()

preload() is a function that is automatically called by the p5.js library. It is used to load external files in a sketch allowing the computer time to complete this process before your sketch runs. The setup() and draw() functions only run once the preload() function has completed.

loadImage()

loadImage() follows a path to an image in its located folder, and loads it into memory as a p5.Image object. p5.Image is an object that stores image information. There are many data types in p5.js including integers, Booleans and strings. Later in this tutorial, we’ll explore together how p5.js functions can use that image data.

To load an image, call loadImage() with one string argument containing the filename of the image. For example, loadImage("flower-1.png");.

If the image is located in a folder, reference that folder by naming it before the filename, followed by a forward slash “/”. For example, if your image is in a folder called assets, you would type: loadImage("assets/flower-1.png");

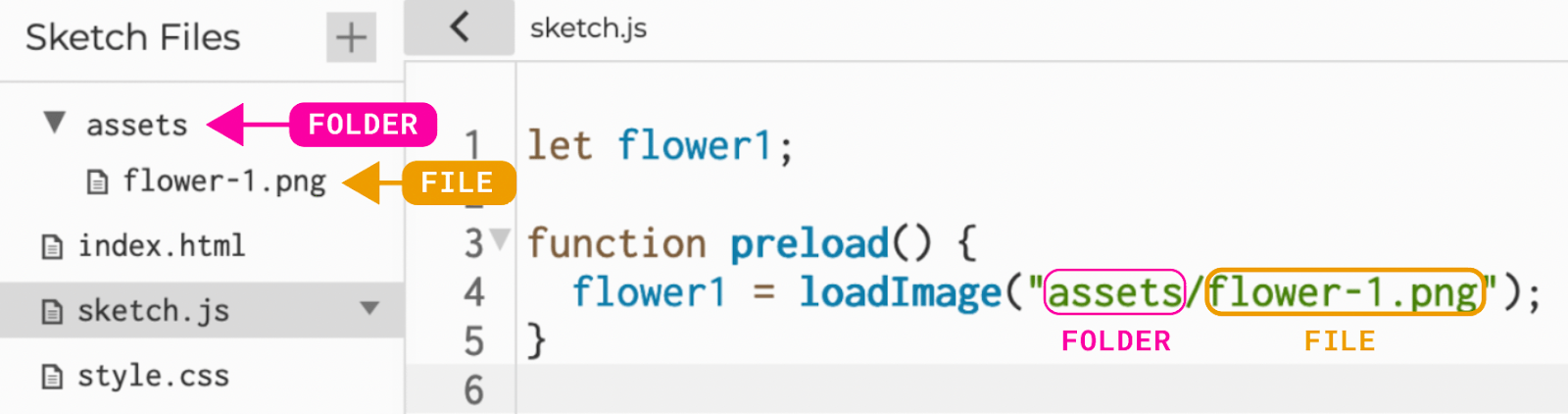

The Sketch Files panel in the p5.js Editor showing the assets folder with the file named flower-1.png inside. In the text editor, assets/flower-1.png appears within quotation marks in the parenthesis for the loadImage function.

The Sketch Files panel in the p5.js Editor showing the assets folder with the file named flower-1.png inside. In the text editor, assets/flower-1.png appears within quotation marks in the parenthesis for the loadImage function.

Alternatively, if you load the image from the web, type in the image URL wrapped in quotation marks, such as: loadImage('https://i.ibb.co/3141Spd/flower-1.png');

Note

When using a web-based image, make sure to access it from a secure and trusted server. Be mindful also of any copyright or licensing required to use the image.

Visit the p5.js Reference to learn more about the preload()  loadImage() functions.

Step 3 – Draw the images onto the canvas

First, let’s display the three static flower images next to each other on a canvas.

  • In the setup() function, call imageMode(CENTER).
    • As with the rect() function, an image’s x- and y-coordinates refer to its top left corner by default. Calling imageMode(CENTER) positions the image’s x- and y-coordinates to its center point.
    • See this example on how imageMode() affects an image’s x- and y-coordinates!
  • Place the first flower image onto the canvas by calling image(flower1, 100, 200); within the draw() function.
    • This places the flower image stored in the global variable flower1 at the coordinates (100, 200).
    • Repeat this step for the two other flower images. Set each flower’s x-coordinate 100px apart from each other, and set their y-coordinates as 200.
  • Give the canvas a white background.
Tip
  • Because every flower will be placed on the same y-coordinate, we can use the same variable to define it: flowerY
  • Add comments to describe each step of your code so far.

Your code should look like this:

image()

The image() function draws a p5.Image object on the canvas. At least three arguments are needed to call image(): the variable that was assigned the p5.Image object , the x-coordinate, and the y-coordinate: image(img, x, y, width);

Visit the p5.js Reference on image() to see more ways you can specify how an image is drawn.

Step 4 – Resize the images using the resize() method

Next, let’s resize each of the flowers so that they fit on the canvas.

  • In the setup() function, add: flower1.resize(100, 100);
    • This will resize the first flower image to 100x100 pixels.
    • Repeat this process for the other two flower images.

Your code should look like this:

p5.Image Methods

To resize flower1, we used the line flower1.resize(100,100). resize() is called a method because it is a special function that operates on objects. Each object data type has a set of methods that are available to use. You can call methods by typing a dot “.” after the object name followed by the name of the method. resize() is one of the methods you can use with p5.Image objects. There are many other methods to process or manipulate the pixels of an image.

Visit the p5.Image Reference page to explore other methods for modifying the appearance of an image.

Try this!

What happens when you try the p5.Image.filter() methods below? Add them to your sketch in setup().

flower1.filter(POSTERIZE);
flower2.filter(ERODE);
flower3.filter(DILATE);

Step 5 – Animate flowers

The resize() method is useful for reducing the source size of an image. But we can also change an image’s display size on the fly. In this step, we’ll do that by adding a couple of size arguments in the image() function call to animate our flowers “growing.”

5.1 – Set the flowers’ sizes before they grow

  • Declare a new variable called flowerSize and give it a smaller number. In this example, we will set it as 20.
    • This will be the starting size of the flowers before they grow.
  • Go to the draw() function. In the image() functions that draw each flower, introduce flowerSize as two extra parameters.
    • The code should look like this: image(flower1, 100, flowerY, flowerSize, flowerSize);

5.2 – Draw stems for each flower

  • Adjust the flowerY variable to 350 to place the flowers near the bottom of the sketch.
  • To draw the first stem, add line(100, 400, 100, flowerY); at the start of the draw() function.
    • The line’s x-coordinate would be the same as the first flower’s x-coordinate. In this case, it is drawn at the x value 100.
    • The line’s y-coordinate would go from the bottom edge of the canvas (400) to the center of the flower (flowerY).
    • Repeat this for the other two flower images, matching each flower’s x-coordinates.
    • Give the lines a thick brown stroke.

Your code should look like this:

5.3 – Use the mouse to grow the flowers

  • In the draw() function, start a new if-statement by typing if (mouseIsPressed) {}
    • Any functions placed inside this if-statement’s body (between the curly braces) will only be performed while the mouse is pressed.
  • Inside the curly brackets, add a line of code: flowerY -= 1
    • This decrements the flowerY value by 1 so the flowers will move farther up the canvas while the mouse is pressed.
  • Right underneath it, add another line of code: flowerSize += 1;
    • This increments the flowerSize variable by 1 so the flower images will grow in size while the mouse is pressed.

Your draw() function should look like this:

function draw() {
  background(255);
  // Draw individual stems.
  stroke("brown");
  strokeWeight(3);
  line(100, 400, 100, flowerY);
  line(200, 400, 200, flowerY);
  line(300, 400, 300, flowerY);
  // Draw the static flower images as one row.
  image(flower1, 100, flowerY, flowerSize, flowerSize);
  image(flower2, 200, flowerY, flowerSize, flowerSize);
  image(flower3, 300, flowerY, flowerSize, flowerSize);


  // Grow flowers while the mouse is pressed.
  if (mouseIsPressed) {
    flowerY -= 1;
    flowerSize += 1;
  }
}

5.4 – Set limits on the flowers’ growth

To avoid the flowers growing infinitely tall, we will introduce if-statements to limit the growth.

  • Create a new if-statement and type: if (flowerSize > 100) { }
    • Inside the curly brackets, add: flowerSize = 100;
    • This sets a condition where if the flower size exceeds 100 pixels, it will stay at the value of 100 as its maximum size.
  • Create another if-statement and type: if (flowerY < 100) { }
    • Inside the curly brackets, add two lines of code: flowerY = 350; and flowerSize = 20;
    • This sets a condition where if the flower’s y-coordinate is less than 100, it will revert back to its original y-coordinate, and the flower will go back to its original size.

Your draw() function should look like this:

function draw() {
  background(255);

  // Draw individual stems.
  stroke("brown");
  strokeWeight(3);
  line(100, 400, 100, flowerY);
  line(200, 400, 200, flowerY);
  line(300, 400, 300, flowerY);

  // Draw the static flower images as one row.
  image(flower1, 100, flowerY, flowerSize, flowerSize);
  image(flower2, 200, flowerY, flowerSize, flowerSize);
  image(flower3, 300, flowerY, flowerSize, flowerSize);

  // Grow flowers while the mouse is pressed.
  if (mouseIsPressed) {
    flowerY -= 1;
    flowerSize += 1;
  }

  // Limit flower size growth.
  if (flowerSize > 100) {
    flowerSize = 100;
  }

  // Reset growth if flower
  // reaches a certain height.
  if (flowerY > 100) {
    flowerY = 350;
    flowerSize = 20;
  }
}

This is one way to limit the growth of the flowers. Alternatively, you can nest if-statements to simplify your code:

function draw() {
  background(255);

  // Draw individual stems.
  stroke("brown");
  strokeWeight(3);
  line(100, 400, 100, flowerY);
  line(200, 400, 200, flowerY);
  line(300, 400, 300, flowerY);

  // Draw the static flower images as one row.
  image(flower1, 100, flowerY, flowerSize, flowerSize);
  image(flower2, 200, flowerY, flowerSize, flowerSize);
  image(flower3, 300, flowerY, flowerSize, flowerSize);

  // Grow flowers while the mouse is pressed.
  if (mouseIsPressed) {
    if (flowerY > 100) {
      flowerY -= 1;

    }

    if (flowerSize < 20) {
      flowerSize += 1;
    }
  }
}

Try clicking and holding to to grow the flowers:

Tip

To organize your code, group the functions and if-statements within the draw() function into their own separate functions called drawStems() andgrowFlowers().

Example
// ... Variable declarations, preload(), and draw()
function draw() {
  background(255);

  // New functions!
  drawStems();
  growFlowers();
}

function drawStems() {
  // Draw individual stems.
  stroke("brown");
  strokeWeight(3);
  line(100, 400, 100, flowerY);
  line(200, 400, 200, flowerY);
  line(300, 400, 300, flowerY);
}

function growFlowers() {
  // Draw the flower images.
  image(flower1, 100, flowerY, flowerSize, flowerSize);
  image(flower2, 200, flowerY, flowerSize, flowerSize);
  image(flower3, 300, flowerY, flowerSize, flowerSize);

  // Grow flowers while the mouse is pressed.
  if (mouseIsPressed) {
    if (flowerY > 100) {
      flowerY -= 1;
    }

    if (flowerSize < 20) {
      flowerSize += 1;
    }
  }
}

Step 6 – Add a watering can GIF

  • In the draw() function after the growFlowers() function, add: image(water, mouseX, mouseY); to draw the watering can GIF and position it to follow your mouse.
  • Resize the GIF to 50x50 pixels in setup() using a method similar to the one used for the flowers in Step 3.

Step 7 – Animate the GIF using our cursor

Next, let’s set the GIF to play only when the mouse is being pressed.

  • In setup(), type water.pause(); to have the GIF in pause mode by default.
  • After draw(), define a new mousePressed() function.
    • Inside the mousePressed() function, type water.play() to start the animation.
  • After mousePressed(), define a new mouseReleased() function.
    • Inside the mouseReleased() function, type water.reset();and water.pause(); to pause and reset the GIF when the mouse is not being pressed.

Your code and sketch should look like this:

In this sketch we have used a different approach to interactivity. In the last sketch we checked the state of the Boolean variable mouseIsPressed in draw(). Now we are using the mousePressed() and mouseReleased() functions. These functions are automatically called by p5.js based on the event of the mouse button being pressed and released respectively. When the mouse is pressed down the animation begins. When the mouse is released it stops animating and resets to the default image.

Try this!

Apply a .delay() method in setup() to speed up the GIF animation. Pass the number of milliseconds between frames as a parameter, e.g. water.delay(10);

Step 8 – Draw the flowers with a pointillism effect

In this next step, we will create an animated pointillism effect for the three flower images.

Pointillism refers to a painting technique that relies on small, colorful dots to form an image. Here is an example, titled View of Paris (1885), by Albert Dubois-Pillet.

Painting of a Paris park that is constructed out of millions of dots.

Painting of a Paris park that is constructed out of millions of dots.

Apart from displaying images, p5.js can also extract pixel information from an image. For example we can obtain the color value of a random pixel from an image and then use that color to draw a dot in the same relative position. This will create a cluster of points on the canvas, creating a pointillist, abstract version of your original image.

8.1 – Prepare the sketch

  • Comment out the growFlowers() function from draw(). We will replace the static flower images with our pointillism animations.
  • Adjust the flowerY variable to 200 to place our pointillism flowers across the middle of the canvas.
let flowerY = 200;

// ...

function draw() {
  background(255);
  drawStems();
  // growFlowers();

  // Draw the watering can GIF.
  image(water, mouseX, mouseY);
}

8.2 – Create a new p5.Graphics object

We’ll start by creating a new p5.Graphics buffer object. A graphics buffer is similar to creating a new canvas. This allows us to display multiple layers of graphics information on the canvas. For example, in our current sketch, we will use a graphics object to separate our static canvas from the pointillist flowers. When we refresh the canvas background, the pointillist painting will not reset, and continues to develop.

.

Image showing the canvas background containing the flower stems and watering can and the graphics object containing the three flowers.

Image showing the canvas background containing the flower stems and watering can and the graphics object containing the three flowers.



  • Declare a new global variable garden.
  • In the setup() function, create a new graphics object using createGraphics(400,400). This object will have the same dimensions as the canvas. Then, assign this object to the global garden variable: garden = createGraphics(400, 400);
  • The new garden graphics object is transparent by default until graphics objects are placed on it.
  • In the draw() function, type image(garden, 0, 0); to draw the graphics object on top of the canvas.
    • Make sure this line is placed before the other flowers and GIF image() callbacks.
  • Your variables, setup(), and draw() functions should look like this.
let flower1;
let flower2;
let flower3;
let water;
let garden; // variable for the new graphics object.

// ... preload()

function setup() {
  // Set a 400x400 px canvas.
  createCanvas(400, 400);

  // Create a p5.Graphics object
  // to render the flowers.
  garden = createGraphics(400, 400);

  // ... imageMode() and resizing
}

function draw() {
  background(255);
  drawStems();
  // growFlowers();
  // Draw the graphics object.
  image(garden, 0, 0);

  // Draw the watering can GIF.
  image(water, mouseX, mouseY);
  // Play GIF when the mouse is pressed.
  if (mouseIsPressed) {
    water.play();
  }
}

// ... drawStems() and growFlowers()

From this point onwards, every function we want to render onto the p5.Graphics object will need to add garden. as a prefix. For example, if you wanted to draw a rectangle on the graphics object, you would write garden.rect(0,0,100,100). The dot notation is used because all the regular p5.js functions can also be used as methods on graphics objects.

  • See this example for steps on how to draw a graphics object on a canvas.
  • See this example of rendering different objects on a canvas vs. a graphics object.

We will be drawing our pointillism effect to the graphics object. Note that this is advantageous because when we refresh the background of the canvas, the garden object does not get refreshed, and we can continue adding pointillist dots to the graphics object.

You can visit the p5.js Reference to learn more about p5.Graphics objects.

8.3 – Source the pixel colors from the image

To create our pointillism effect, we’ll start by sourcing the colors from the flower images’ pixels.

  • Define a new function called paintFlower().
  • First, we’ll declare variables to help us source pixels from random points within the image. Let’s begin by doing this for the first flower image.
  • Declare the variable sourceX and assign it a random value between 0 and the image’s width. Write: let sourceX = random(0, flower1.width);
  • Declare the variable sourceY and assign it a random value between 0 and the image’s height. Write: let sourceY = random(0, flower1.height);
  • Add the line let c = flower1.get(sourceX, sourceY);.
    • We are using the .get() method for a p5.Image object to “get” the pixel color value from a randomly selected pixel in the image.
    • The variable c is being declared and assigned that color value.

At this stage, the new function should look like this:

function paintFlower() {
  let sourceX = random(0, flower1.width)
  let sourceY = random(0, flower1.height);
  let c = flower1.get(sourceX, sourceY);
}

8.4 – Draw points onto the canvas

Now that we’ve obtained a pixel color from a randomly selected pixel in the image, we will draw a point on the canvas with that color at the same relative location.

  • Set the variable c as the stroke color points drawn on the garden graphics object by typing garden.stroke(c);
  • Set the stroke weight to a random value between 5 and 10 to make the point visible and of varied size: garden.strokeWeight(random(5,10));
  • Draw the point onto the graphics object by typing garden.point(sourceX, sourceY);.
  • Finally, call the paintFlower(); function in draw().
  • You’ve created your first image pointillism!

Here’s how it looks so far:

8.5 – Add parameters to the function definition to generalize to the other flowers.

  • Go back to the paintFlower() function and add in three new parameters: function paintFlower(img, x, y) { }
    • img specifies the image which we will be using to extract pixel color information.
    • x and y specify the x and y position of the image on the graphics object.
  • In the paintFlower() function, replace every instance of flower1 with the parameter name img.
  • Change garden.point(sourceX, sourceY); to garden.point(sourceX + x, sourceY + y);.
  • In the draw() function, call the paintFlower() function three times. Each time, specify the flower image, x, and y position within the parameters.
    • Note: Remember that each image is being drawn by its center coordinates thanks to imageMode(CENTER).
    • In this example, we will place the flowers’ coordinates to the end of each stem: paintFlower(flower1, 50, 100); paintFlower(flower2, 150, 100); paintFlower(flower3, 250, 100);

Here is how your sketch should look:

8.6 – Animate the flowers when the mouse is pressed

  • Similar to Step 4.3, inside the draw() function, write if (mouseIsPressed) { }. Include the three paintFlower()functions inside the curly braces.

The sketch now looks like this:

Try this!

Water each flower individually by painting a flower once the cursor is close to its position, using the dist() function.

Example.

Step 9 – Save the sketch as a GIF file

  • Define a new function keyPressed() at the bottom of the sketch.
  • In the function, add a new if-statement by typing: if (key === "s") { }
    • Inside the curly brackets, add a new saveGif() function by typing saveGif('garden', 5);.
      • This will save the animation as a 5-second GIF titled “garden.gif” locally to our device when the S key is pressed.
  • Optional: Inside the keyPressed() function, add garden.clear(); to reset the flowers’ painting every time any key is pressed.

Your keyPressed() function should look similar to this:

function keyPressed() {
  // Save the sketch as a GIF
  // when the S key is pressed.
  if (key === "s") {
    saveGif('garden', 5);
  }

  // Reset the painting when
  // any key is pressed.
  garden.clear();
}

Conclusion

Congratulations on completing this tutorial! You have now created and modified a GIF animation using p5.js. Visit the p5.js Reference pages below to explore other ways to display and manipulate images, pixels, and animated GIFs in p5.js.

Here is the complete code from this tutorial for reference.

Resources & References
